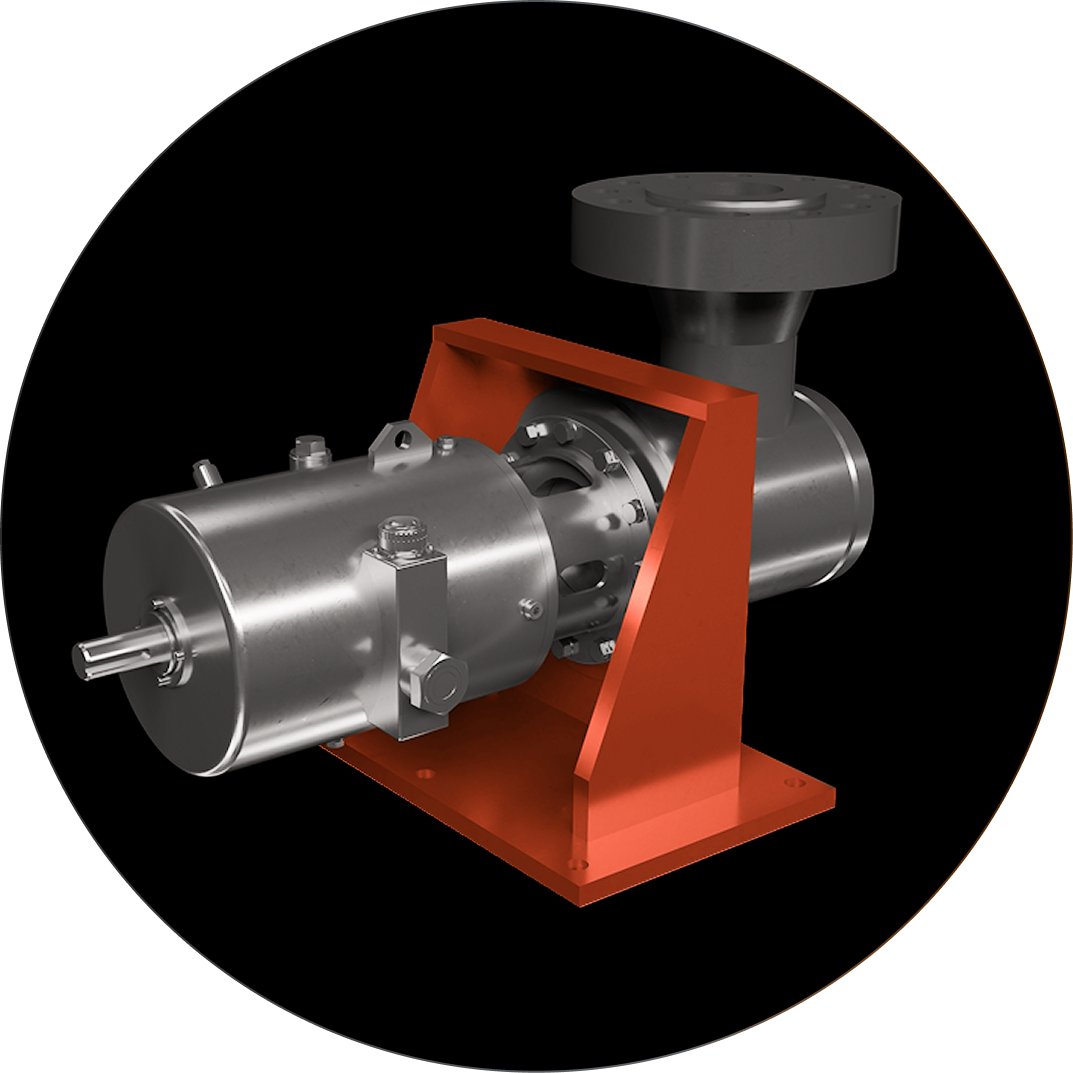

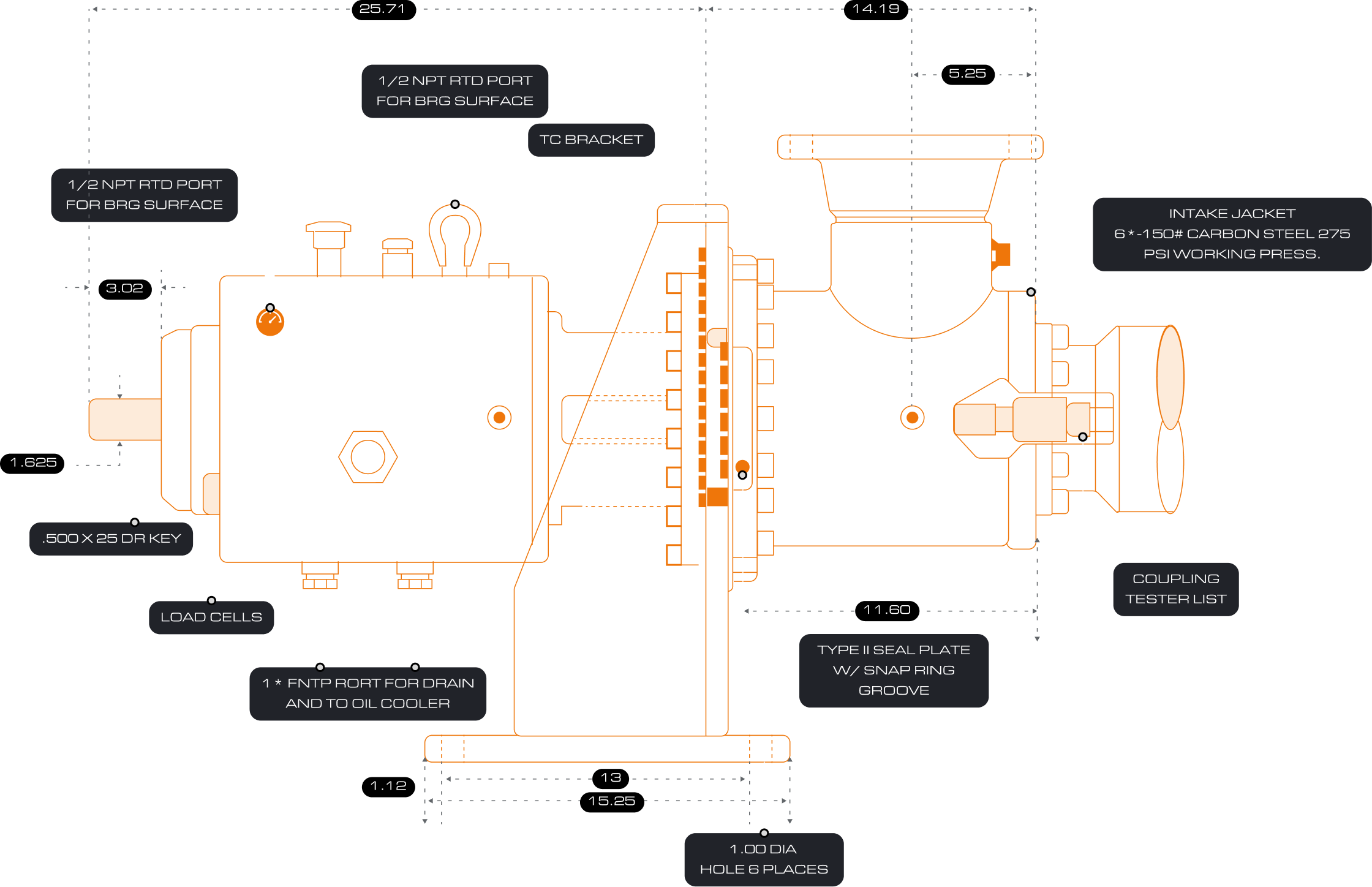

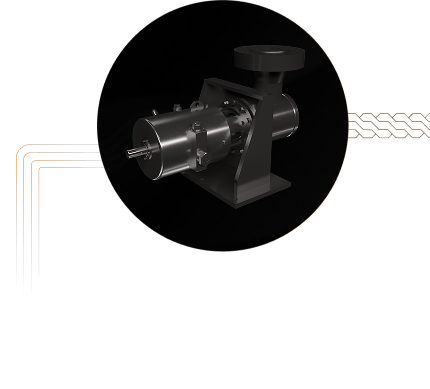

Mingo Pump Test Systems include a Thrust Chamber, Support Bracket, and Intake, designed to support a wide range of Pump Barrel configurations. Two system options are available based on thrust capacity.

The 9,000 lb system offers two different support bracket centerline height options and features a 4”–150# flanged inlet connection.

The 14,000 lb system provides four support bracket centerline height options and includes two intake configurations: 6”–150# or 8”–150# flanged inlet connections.

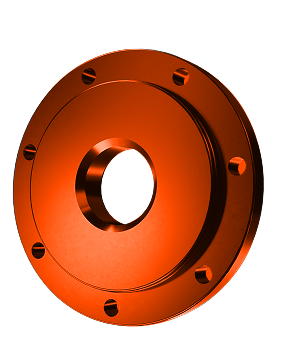

Both systems can accommodate 338 through 950 series pumps through an assortment of adapter plates, couplings, and hammer union discharge adapters listed below.
