Precision‑Tested Performance, Every Time.
General assembly

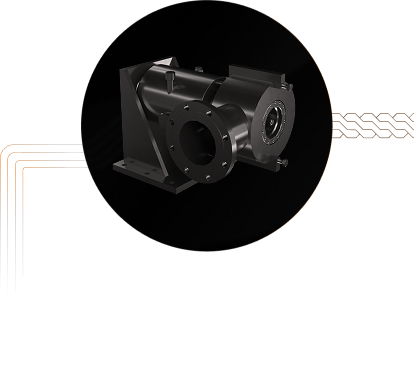

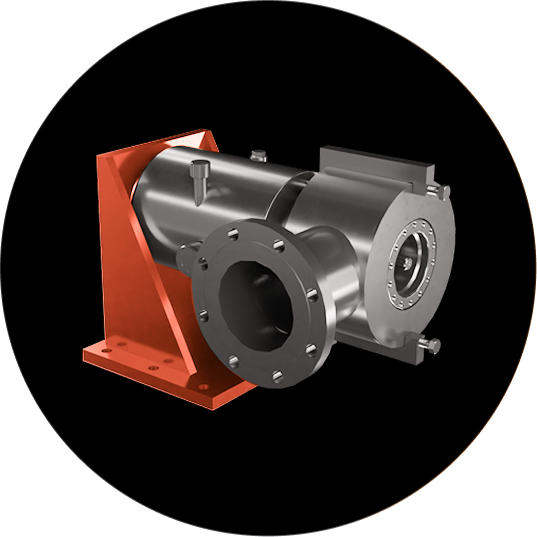

Mingo Pump Test Systems include a Thrust Chamber, Support Bracket, and Intake, designed to support a wide range of ESP pump configurations. Two system options are available based on thrust capacity.
The 9,000 lb system offers two different support bracket centerline height options and features a 4”–150# flanged inlet connection.
The 14,000 lb system provides four support bracket centerline height options and includes two intake configurations: 6”–150# or 8”–150# flanged inlet connections.

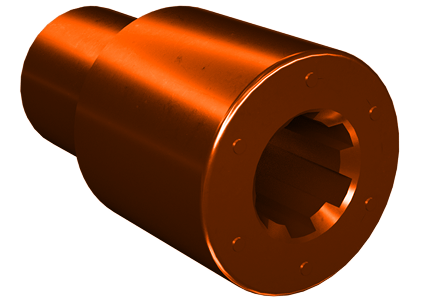

Both systems can accommodate 338 through 950 series pumps through an assortment of adapter plates, couplings, and hammer union discharge adapters listed below.
ESP TEST PUMP BENCH
| DESCRIPTION | MINGO PART NUMBER |
|---|---|

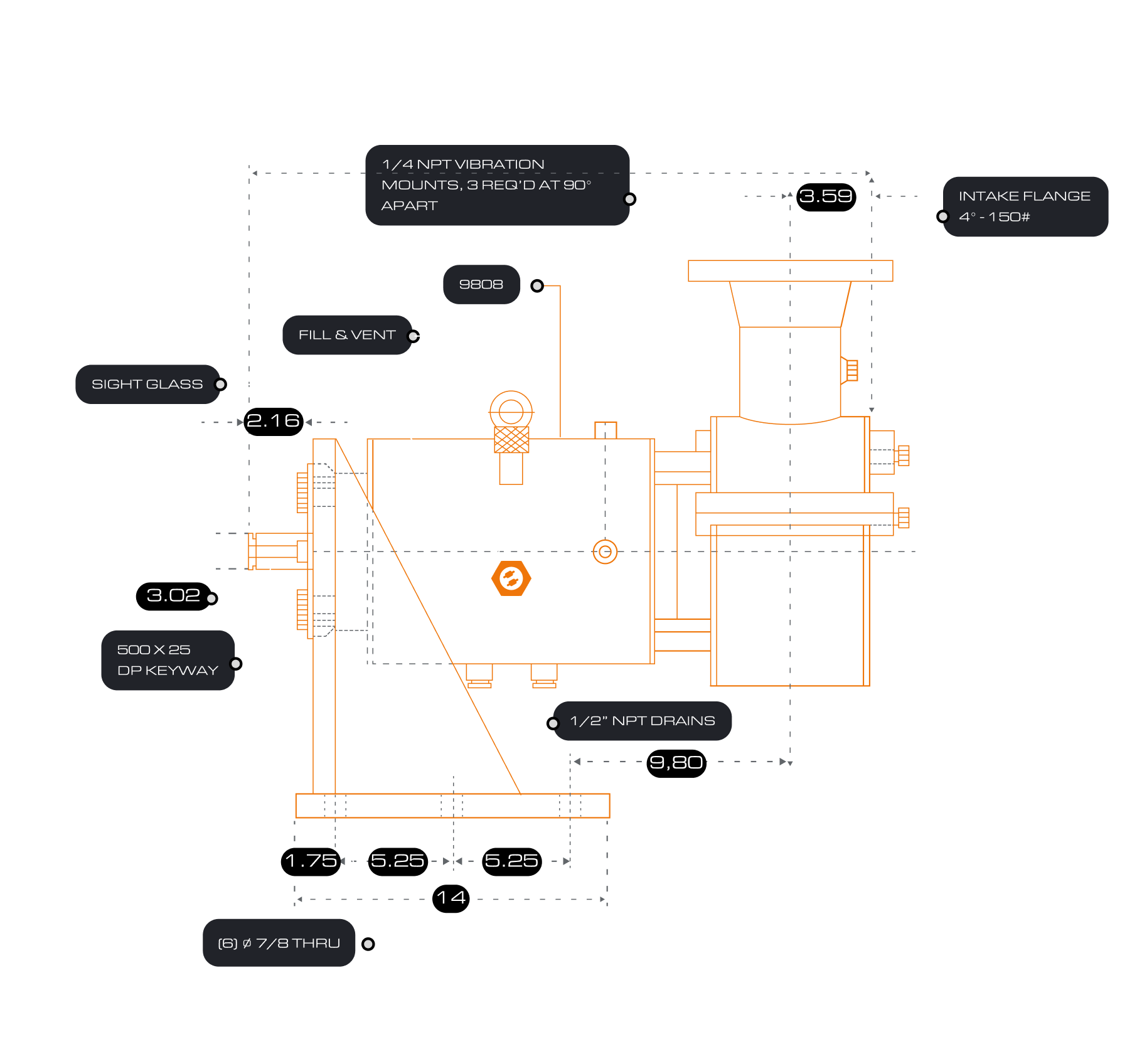

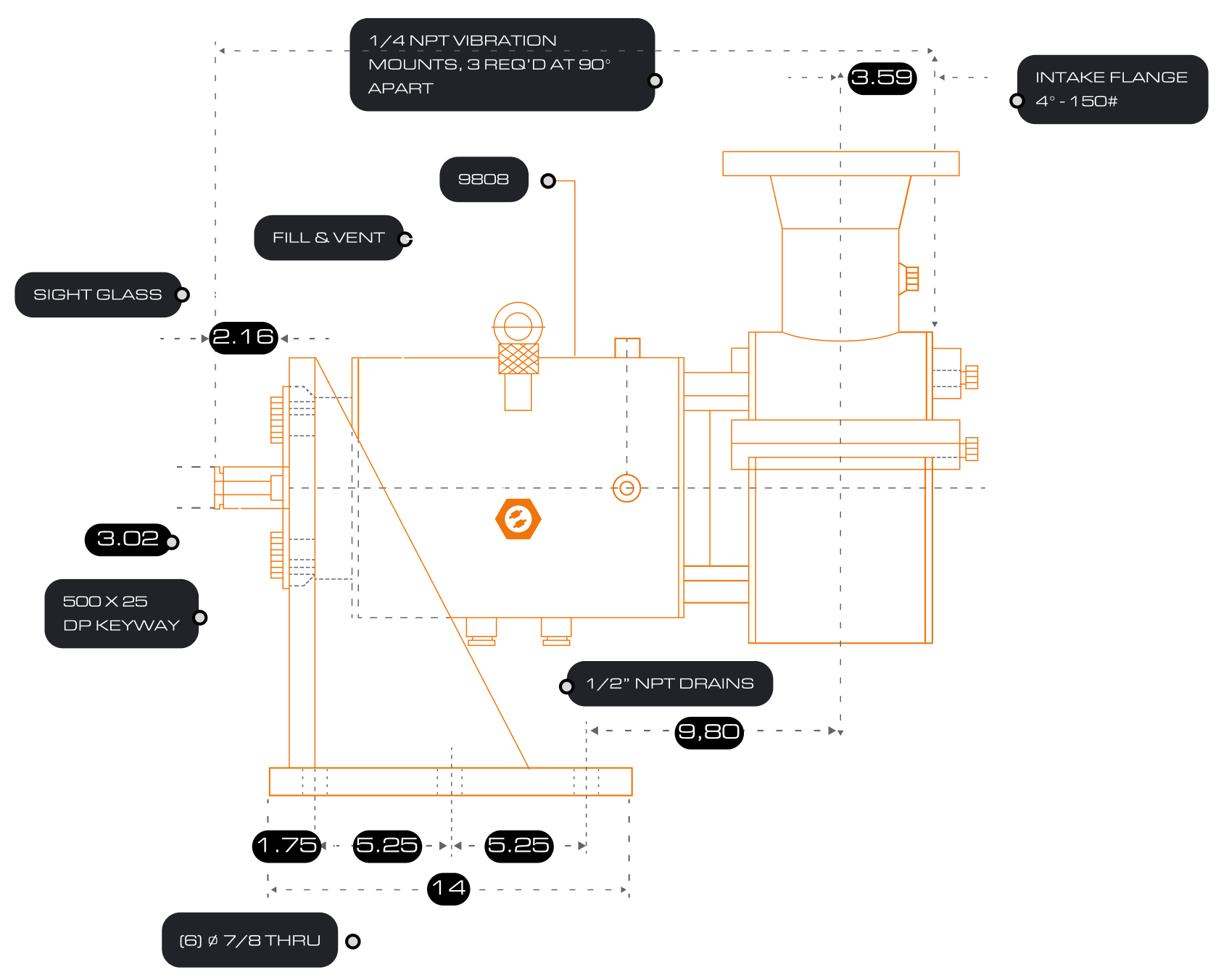

| THRUST CHAMBER DIA-LP 4" – 150# ANSI RANGE, 100 PSI, 8,000 LB THRUST, 600 HP | C-9808 |
| SUPPORT BRACKET – 15.38" CENTERLINE – 8 HOLE MOUNTING RING | 10519 |
| SUPPORT BRACKET – 10.87" CENTERLINE – 8 HOLE MOUNTING RING | 10981 |
| SUPPORT BRACKET – 11" CENTERLINE – 8 HOLE MOUNTING RING | 13622 |
| 6" – 150# ANSI FLANGE 100 PSI (OPTIONAL UPGRADE) | 11448 |

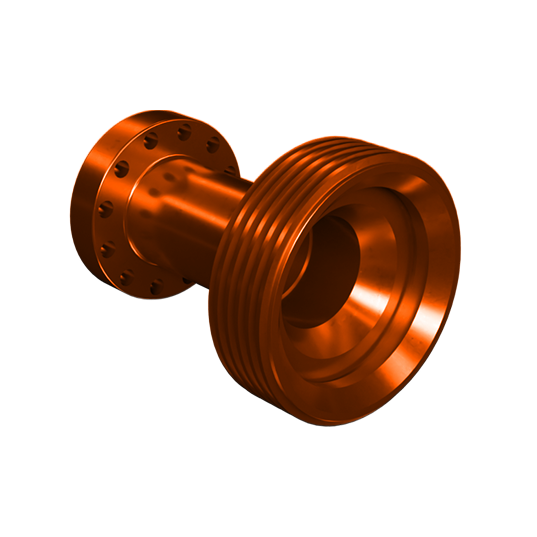

Discharge Adapters
| DESCRIPTION - PUMP SERIES | O-RING | UNION SIZE (IN) | MINGO PART NUMBER |
|---|
